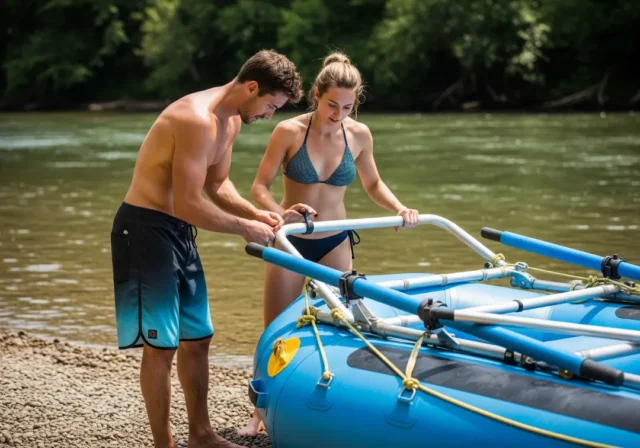

Setting Up an Oar Frame: The Definitive Rigger’s Method

The quiet focus at the river’s edge—the methodical click of fittings, the satisfying hum of a tightened cam strap against the tube of an AIRE or NRS Otter raft. This is where the adventure truly begins, long before the first paddle stroke. It’s the ritual of the rigger, transforming a simple raft into a precision craft. This guide is your apprenticeship, designed to move you beyond confusing instructions and turn the process of setting up your oar frame system into a core whitewater rafting skill, building a rig that feels less like equipment and more like a trusted partner.

This is not merely assembly; it is the art of translating a collection of components into a responsive, river-ready extension of your will. True competence comes from understanding the “why” behind each measurement and strap. You may be starting with a pile of aluminum tubes and a sense of uncertainty, but you will finish with a fully rigged, balanced, and personalized craft, empowered with the knowledge to troubleshoot and optimize your setup with the confidence of a seasoned river guide.

Here’s how we’ll get you there:

• The Rigger’s Lexicon: Master the essential terminology for every component, from side rails and oar towers to the nuances of different oarlock systems.
• The Blueprint Phase: Learn the critical measurements and formulas needed to select the perfectly sized frame and oars for your specific raft.
• From Box to Boat: Follow a logical, step-by-step assembly and installation process, centered on the unbreakable principle of counter-tension.
• Dialing It In: Elevate your setup from functional to optimal by fine-tuning oar balance, weight distribution, and rower ergonomics for peak performance.

What is the Fundamental Anatomy of an Oar-Powered Raft System?

Before we tighten a single bolt, we need to speak the same language. This section establishes a clear, shared vocabulary for every component of the raft and frame, a crucial step in a proper oar frame setup. Understanding these terms ensures you can follow every instruction that follows with confidence and precision.

What are the primary structural components of the frame and raft?

First, let’s look at the boat itself. The raft’s Main Tubes provide the buoyancy and shape, while internal Thwarts (if present) add rigidity. Critically, the raft features heavy-duty D-Rings, the non-negotiable anchor points to which we will secure our entire system. The oar frame‘s skeleton begins with the Side Rails, the two longitudinal pipes that run parallel to the raft’s tubes. These determine the frame’s overall length and serve as the main mounting platform for every other component. Connecting these are the Cross Bars, the transverse pipes that set the frame width, provide structural rigidity, and create distinct gear “bays” for coolers and dry boxes. The forward-most crossbar is the Foot Bar, specifically positioned for you, the rower, to brace against. This is what allows you to translate powerful leg-drives into efficient strokes.

These components come together in two primary construction types. A modular frame, like the popular NRS Modular Frame System or those from Down River Equipment frames, is prized for its supreme adjustability and the ability to be broken down for transport. They are held together by specialized Fittings—like the NRS LoPro™ Fittings that use U-bolts, or DRE’s set-screw Tees—that allow you to customize your frame and achieve a unique frame configuration. Conversely, Welded Frames offer superior, bombproof rigidity but are fixed in their configuration. Within this skeleton, we integrate key gear-hauling components like the Drop Bag, Cooler, and Dry Box, all of which serve the dual purpose of organizing gear and lowering the raft’s center of gravity for better stability. The entire system is held together by the unsung heroes of rigging: Cam Straps. Their quality and proper use are absolutely non-negotiable for safety. Understanding the science behind high-quality cam straps is fundamental to a secure rig. It’s worth noting that while this guide focuses on raft frames, many of these principles also apply to cataraft frames.

With the frame’s skeleton and the raft’s anchor points identified, we can now focus on the “engine” of the system—the components that translate your motion into power.

What components make up the propulsion and control system?

Your power is transferred to the water through a series of interconnected parts. Bolted to the side rails are the Oar Towers (or Oar Mounts), the vertical posts that hold the oarlocks. Their mount height—commonly 6, 8, or 10 inches—is a critical ergonomic variable that determines the pivot point of your oar. Atop these towers sit the Oarlocks, the U-shaped or circular fittings where the oar shaft pivots. The main types are traditional open oarlocks and the alternative system of pins and clips, which we’ll explore shortly. The oar itself is a simple lever with three parts: the Blade catches the water, the Shaft provides the leverage, and the Grip is the human interface. Oars come in a variety of materials and blade shapes, from classic Macon style blades to more specialized shoal cut blades. Shafts like the popular Cataract SGG Oar Shafts offer a great blend of stiffness and durability. For a deeper dive, consider this guide to choosing between wood and carbon fiber oars.

Diving deeper into the oarlock collection reveals a key choice in how you control the blade. Traditional Open Oarlocks allow the oar shafts to rotate freely, enabling a technique called “feathering” where the oar blade is turned parallel to the water on the recovery stroke. This requires more skill but offers more finesse and feathering capability. In contrast, Pins & Clips use a vertical pin on the tower and a clip on the oar shaft to lock the blade in a perpetually vertical orientation, guaranteeing a power-face is always presented to the water. This is ideal for big water or for newer rowers. A hybrid system, known as Oar Right Locks, uses a splined insert to fix the blade angle within an open oarlock, offering a middle ground. Essential accessories complete the system. Oar Stoppers or a Molded Oar Sleeve are clamped to the oar shaft to set its position in the oarlock and protect it from wear. Finally, Oar Tethers are simple safety leashes that prevent the catastrophic loss of an oar in turbulent water.

Now that you can name every piece of the puzzle, the next step is to ensure those pieces are the right size and style for your specific boat and mission.

How Do You Correctly Size and Select Your Rig’s Components?

This is where the art of rigging becomes a science. This section covers the critical process of equipment selection and sizing. We move from abstract concepts to data-driven decisions, using precise frame width and length measurements of your raft to calculate the exact dimensions of your components. Getting the proper frame fit right is the foundation for a perfectly harmonized rig.

What are the key measurements needed from your raft?

Before you order a single part, you need to take four critical measurements from your raft, fully inflated, to determine the recommended frame dimensions. First is the Interior Width, measured between the main tubes at the widest, flattest point of the boat. This directly determines your crossbar length. Second is the Tube Diameter. These two variables allow you to calculate the most important dimension for frame builders: the Center-to-Center Width. This is the ultimate goal for sizing your crossbars, and the formula is simple: Center-to-Center Width = Interior Width + One Tube Diameter. The final measurement is the Straight Tube Length (or “flat length”), which dictates the maximum frame length of your side rails.

It is crucial that you measure your specific boat to find the right size frame. Even within the same model, variations in manufacturing and inflation levels can lead to significant differences. These frame dimensions are what you will use to select the correct side rail and crossbar lengths from manufacturer catalogs. While doing so, you may encounter Single-Rail and Double-Rail frames; double-rail systems are stronger and more rigid but can influence oar length selection. You must also select the correct Oar Tower Height. This choice is directly related to your seating position. If you’re sitting on a low cooler, an 8-inch tower might be perfect. If you’re on a raised captain’s chair, you may need 10-inch towers to ensure the oar shafts clear your knees during a full stroke. Thinking through these details now prevents painful and inefficient problems later. It’s also worth understanding how raft dimensions shape on-water safety and performance.

With your raft’s precise dimensions in hand, you can now solve the most crucial equation in oar rigging: calculating the perfect oar length.

How do you determine the correct oar length?

Selecting the right oar length is a blend of science, established principles, and a little bit of art. To find a good oar length, we use what I call the “Rigger’s Trinity”—three methods that allow you to cross-verify your choice. The first is the foundational principle: The Rule of Thirds. For proper balance and leverage, approximately one-third of the oar’s total length should be oar inboard (between the oarlock and your hand), with two-thirds outside. The second method is a quick estimation formula that provides an excellent starting point: Total Oar Length ≈ Frame Width x 1.5. The third and most reliable method is to consult the manufacturer’s reference charts. Companies like NRS and DRE have dialed in their recommendations over decades, offering data-backed oar lengths—like 9.5, 10, or 10.5 feet—for their standard frame widths.

For those who want to get more technical, traditional formulas offer more precision. The Shaw & Tenney Formula is designed to achieve a perfect 7:18 leverage ratio, a classic standard among oarsmen. For a non-NRS frame, a good formula is: Approximate Oar Length = [(Oarlock-to-Oarlock distance / 2) - 2"] x 3. So why would you ever deviate from the formulas? A rigger might choose a shorter frame or shorter oars for navigating narrow, technical rivers where maneuverability is key, or a longer right length oar for big, powerful water where maximum leverage is needed. Furthermore, a higher seating position, like on a high-back captain’s chair, often necessitates longer oars to maintain the correct angle for the oar blades in the water. Remember, having correctly sized equipment is a foundational aspect of safety, underpinning the legal USCG equipment requirements for recreational vessels.

Once the frame is built and attached, the final and most personal step is to configure the rower’s station for a full day of comfortable, powerful strokes. This is where you truly begin to master the mechanics of how to row a raft.

What is the Step-by-Step Method for Assembling and Installing the Frame?

This is where theory becomes reality. This section provides a clear, sequential, and foolproof guide to the physical frame assembly and component installation process, translating abstract concepts into concrete, confident actions. We’ll build the frame, marry it to the boat, and dial in your personal fit.

How do you assemble a modular oar frame?

Let’s begin with a “Pre-Flight Check.” Lay out all your parts on a tarp to ensure everything is present and gather your tools—typically an Allen wrench or hex key set and a rubber mallet.

• Step 1: Create a “ladder.” Loosely connect one side rail to all of your crossbars. The crucial word here is loosely. Keep all fittings just finger-tight to allow for adjustments and prevent the frame from binding.
• Step 2: Complete the rectangle. Attach the second side rail to the crossbar assembly. The frame will be complete, but still loose and wobbly.
• Step 3: True the frame. Place your coolers and/or dry boxes into their designated bays. Now, adjust the crossbars until they fit snugly around these items. This is the secret to squaring up the frame perfectly.
• Step 4: Systematically tighten all fittings. For DRE-style set screws, there’s an expert technique: tighten firmly, back the screw off a half-turn, and repeat this process 7-10 times. This allows the screw’s teeth to “bite” into the pipe, creating a far more secure hold than a single tightening. For NRS LoPro™ fittings, tighten the U-bolt nuts evenly and alternately to ensure consistent pressure without damaging the frame pipe. When you’re done, the frame should be perfectly square and rigid. Give it a final check by trying to rock it diagonally; there should be absolutely no play or give in the joints.

For anglers using a specialized fishing frame, this is also the stage where you’ll install components like drop-in cooler mounts, anchor systems, and flip seat mounts. The modular design allows for a high degree of customization, but remember that every added component can affect the overall weight distribution and rowing position.

Pro-Tip: After your first hour on the water, pull over and re-check the tightness of all your frame fittings. The initial vibration and torque of rowing can cause things to settle and loosen slightly. A quick check ensures your rig stays bomber for the rest of the trip.

With a rigid, squared-up raft frame ready, the next task is to securely marry it to the raft using a principle that is the cornerstone of safe rigging.

How do you properly attach the frame to the raft using counter-tension?

The stability of your frame position on the raft depends entirely on one core concept: Counter-Tension. This means using straps that pull in opposing directions, creating a web of forces that locks the frame in place. This principle is what prevents the frame from shifting under the powerful forces of rowing and violent river features. Before you begin, consider applying HD40 Wear Patches (also called wear strips), typically 8″x22″ or 9″x14″, to the raft tubes where the side rails will sit to prevent long-term abrasion.

The process is simple and methodical. You will need a minimum of four high-quality cam straps. You will run them from the four corners of the frame to the raft’s D-rings at their d-ring attachment points in opposing diagonal patterns. For the front two straps, the strap from the front-left corner of the frame goes to a D-ring on the rearward right of the boat, and the strap from the front-right corner goes to a rear-left D-ring. You’ll create a similar “X” pattern with the rear two straps. The physics of this “X” pattern ensures that any forward, backward, or side-to-side force is immediately counteracted by a strap pulling in the opposite direction.

Pro-Tip: Use a Girth Hitch to attach the buckle end of your cam strap to the D-ring. Simply pass the webbing end of the strap through the D-ring, then pass it through the cam buckle’s own metal loop and pull it tight. This creates a fixed, non-slip anchor point that makes tightening the strap much more effective.

Regarding frame placement, the two main options are Center Mount and Stern Mount. Center mounts are the most common and versatile, ideal for heavy loads and solo rowing as it places the rower near the boat’s natural pivot point. Stern mounts are typically used on larger rafts in paddle-assist configurations. Tighten the webbing straps until the frame and raft feel like a single, unified unit; the frame should slightly depress the raft tubes. Do not under-tighten. A shifting frame is a major safety hazard that can lead to a complete loss of control at the worst possible moment.

Once the frame is locked in place, the final and most personal step is to configure the rower’s station for a full day of comfortable, powerful strokes.

How do you set up and adjust the rower’s cockpit?

This is about ergonomics and establishing a comfortable rowing position. The goal is a position that allows you to use your powerful leg and core muscles, not just your arms. Start by loosely installing the rower’s seat, foot bar, and oar towers. Now, it’s time for the most critical fitting step: The “Ghost Row” Technique.

With the raft fully inflated on dry land, sit in the rower’s seat and simulate the full range of the rowing motion. It’s best to do this with just the oar shafts (no blades). During the ghost row, adjust the foot bar so that you can brace with slightly bent knees at the start of the stroke and achieve nearly full leg extension at the end without locking out your knees. At the same time, position the oar towers so the handles don’t interfere with your legs or body at any point in the stroke. This process is key to getting a comfortable rowing setup. Once you’ve found this ideal geometry, lock down the seat, foot bar, and oar towers.

Next, set your Oar Stoppers/Sleeves. Adjust them along the oar shaft until there is a handle spacing of approximately one fist-width (about 4 inches) between the oar handles when they are held horizontally and centered over your lap. This spacing prevents you from pinching your hands but still allows for powerful, overlapping powerful strokes. It is absolutely crucial to do this dry-land adjustment before you launch. Trying to make these changes while drifting into the first rapid is a common and stressful rookie mistake. Your final cockpit should feel comfortable, powerful, and allow for a full, unimpeded range of motion before the boat ever touches the water.

Your rig is now assembled, installed, and fitted. The next level of mastery involves moving from a basic setup to one that is finely tuned for the physics of the river.

How Can You Fine-Tune Your Rig for Peak Performance and Comfort?

A well-assembled rig is functional. A fine-tuned rig is an extension of your body. This is where we elevate your understanding from basic assembly to expert-level performance tuning, focusing on the underlying principles of physics and biomechanics that govern efficient rowing.

Why is oar tower placement over the raft’s pivot point so important?

Every raft has a natural Pivot Point, typically near its geometric center, around which it turns most easily. For the most efficient turning and spinning, your oar towers should be placed as close as possible to being directly over this point. This alignment allows you to turn the boat with minimal effort, essentially spinning it in place rather than fighting to push a large arc of water. You can find this point by observing your unladen raft in calm water; the center of its waterline is a good approximation. When loaded, this point will shift slightly with the weight.

In the real world of multi-bay gear frames, perfect alignment is often impossible. However, a practical rule of thumb is that a mount height and positioning within 12-18 inches of the true pivot point is generally acceptable and highly effective. As you move further off-center, the “swing weight” of the raft increases, making pivots feel sluggish and physically demanding. Experienced riggers can use this to their advantage, employing strategic weight distribution to compensate for slightly off-center oar towers, helping to re-balance the raft’s handling.

Just as the frame’s position affects the entire boat’s handling, the distribution of weight within that frame is the next critical layer of performance tuning.

How should you strategically distribute weight for optimal control?

There is a golden rule of raft rigging: the heaviest gear—coolers, kitchen boxes, heavy dry boxes—must be placed low in the raft and biased towards the front. This is the trick to loading gear correctly. This creates a “bow-forward” trim. This configuration allows the raft to punch through waves effectively and track straighter in the current. A stern-heavy boat, by contrast, is a nightmare to control; its bow gets pushed around by currents, and it’s incredibly difficult to maneuver. Lighter, bulkier gear like sleeping bags and tents should be placed on top of the heavier items or further towards the stern to help balance the load.

The performance impact is significant. Uneven weight distribution ratios for different load types will create drag on the heavier side, causing the raft to track poorly and constantly pull in one direction. This forces you to make constant corrective strokes, leading to significant fatigue over a multi-day trip. Your strategy can also change with the water conditions, which is key for river-condition-specific setups. For a technical, low-volume run like Nantahala Falls, a more centered and balanced load aids nimble maneuverability. For big, high-volume water, concentrating weight heavily in the bow helps the raft maintain momentum and power through large waves without being stalled. Proper boat control is a core tenet of the American Whitewater safety code principles, and it all starts with weight distribution.

With the boat’s weight balanced, the final piece of the puzzle is balancing the oars themselves to fight rower fatigue.

What is oar balance and how do you achieve it?

Here’s the “why”: standard, non-balanced oars are blade-heavy. This imbalance means that on every single recovery stroke, you have to expend energy simply lifting the blade out of the water. Over thousands of strokes on a multi-day trip, this constant, subtle lifting leads to significant fatigue, particularly in the triceps and shoulders.

Oar Balance is the art of adding weight to the handle end of the oar to counteract the weight of the shaft and blade, creating a neutral balance at the oarlock. A perfectly balanced oar will rest horizontally in the oarlock with no effort from you, feeling almost weightless in the hands during the recovery phase of the stroke.

There are two primary ways to achieve this. The simplest is to purchase oars with factory-installed counterbalanced handles or weights. The second is a DIY approach, which traditionally involves adding measured amounts of lead tire weights inside the oar grips to precisely offset the blade weight. The ultimate benefit is profound: balanced oars allow you to dedicate 100% of your energy to the power stroke, dramatically improving efficiency and reducing fatigue on long river days. While it’s an advanced technique, many experienced rowers consider oar balance to be one of the most significant quality-of-life improvements they can make to their rig. It connects the equipment directly to the anatomy of an efficient oar stroke, where energy isn’t wasted.

With a fully tuned and balanced rig, the final step is to ensure it stays that way through diligent safety checks and maintenance.

What are the Critical Safety Checks and Maintenance Routines for an Oar Rig?

A well-built rig is only safe if it’s meticulously maintained. This section provides the actionable checklists and knowledge you need for pre-trip inspections and long-term care, covering key safety considerations and best practices. This isn’t just about gear longevity; it’s about safety, cementing your role as a responsible, self-sufficient rigger.

What is the essential pre-launch safety inspection checklist?

Before your boat touches the water, every single time, you must perform this check.

• Frame & Fittings: Visually inspect all welds for any signs of cracks. Manually check that all U-bolts and set screws are tight. A single loose fitting can lead to frame failure at the worst possible moment.
• Rigging Straps: Inspect every cam strap for fraying, cuts, or sun-fading (UV damage). This includes any short 2-foot webbing straps you might use for accessory attachment, checking the strap length for suitability. Most importantly, test the cam buckle mechanism itself. It should grip the webbing securely and show no signs of slipping under a strong pull.
• Oars & Oarlocks: Check oar shafts and blades for any significant dings or cracks that could compromise their integrity. Ensure the oarlocks are not bent and that your oar stoppers or sleeves are secure and haven’t slipped from their set position.
• Raft Integrity: Verify proper inflation pressure in all air chambers. Check that all valves are functioning correctly and are fully sealed. Do a quick visual scan of the raft material for any obvious damage.

Beyond the basic component check, you must adopt the “Rig to Flip” mentality. This means ensuring every single piece of gear is secured in a way that it will not be lost in the event of a capsize. Pay special attention to frame-specific entrapment hazards: ensure there are no gaps in the frame large enough for a foot to become entrapped and no loose ropes or straps that could create an entanglement risk. The most significant dynamic hazard on the water is the downstream oar catching on a rock. This can violently swing the handle into the rower or even flip the raft, underscoring the need for a solid, predictable setup. Finally, confirm all legally required safety gear is present and accessible, including a PFD for every person, a throw bag, and a spare paddle/oar. Just as professional drivers use a checklist, a systematic approach like this Whitewater rafting pre-trip vehicle inspection guide is the mark of a pro. It’s the foundation for building a trip-specific river rescue kit.

A pre-launch check ensures safety for the day, but proper off-season care ensures the longevity of your gear for years to come.

How do you troubleshoot the most common rigging problems?

Even with a perfect setup, issues can arise. Understanding these common problems and advanced troubleshooting scenarios equips you not just to set up a rig, but to maintain and perfect it over its entire lifespan.

• Problem: The frame shifts forward or backward during use.
  • Solution: This is almost always a failure of counter-tension. Re-rig the four main frame straps in opposing diagonal patterns. Use a girth hitch on the D-rings to create a more secure, non-slip anchor point.
• Problem: Rowing feels weak, inefficient, or causes back pain.
  • Solution: Your cockpit ergonomics are off. Your rowing position is likely compromised. The foot bar may be too far away, preventing you from using leg drive, or the oar towers are too low for your seat height, affecting your shoulder height at the catch. Perform a “ghost row” on land to readjust the entire station.
• Problem: The boat is difficult to turn or constantly pulls to one side.
  • Solution: The primary culprits are improper weight distribution or poor frame placement. Ensure your heaviest gear is centered and biased forward. If the problem persists, the frame may be positioned too far from the raft’s natural pivot point.
• Problem: Your knees or thighs constantly bump into the oar shafts.
  • Solution: The oar towers are too short for your seating height. This is a common issue when switching from sitting on a low cooler to a raised seat. The solution is to replace the current oar mounts with a taller set (e.g., move from 8-inch to 10-inch towers).

Conclusion

You’ve made it through the rigger’s apprenticeship. You now understand that a successful oar rig is far more than an assembly of parts. It is a system built on a foundation of correct measurements, with oar length being a function of frame width, best determined using the “Rigger’s Trinity” of principles, formulas, and charts. Its unshakeable stability comes from the elegant principle of Counter-Tension, achieved by rigging four cam straps in an opposing diagonal pattern. And its optimal performance is achieved by aligning the oar towers with the raft’s natural pivot point and adhering to the golden rule of weight distribution: heaviest gear low and forward. Finally, you know that systematic pre-launch safety inspections are non-negotiable and are the final step in translating a well-assembled rig into a truly river-ready craft, moving from basic assembly to advanced optimization techniques.

Your journey as a rigger is an ongoing process of refinement. Use the comments below to share your own pro-tips or ask questions, and explore our complete library of river skills guides to continue turning your knowledge into wilderness instinct. In the future, look for tools like interactive setup calculators to further simplify this process.
