Raft Pin Kit Guide: For Rafts, Kayaks & Packrafts

The roar is deafening as thousands of pounds of hydraulic force hold the raft against a mid-river boulder, immovable by human strength alone. In this moment, the river stops being a playground and becomes a problem to be solved. Here, a simple pin kit bag of rescue gear becomes the difference between a successful recovery and a catastrophic loss. This guide will transform that bag of hardware into a system you understand, trust, and can adapt, turning theoretical knowledge into wilderness instinct when it matters most for whitewater safety.

This isn’t just a buyer’s guide or gear list. It’s a structured approach to understanding a life-safety system essential for any serious rafter. We will deconstruct the industry-standard “4:3:2:1:1 principle,” learning the function and specifications behind every single piece. We will master the physics of swift-water rescue, understanding the step-by-step process for rigging a 3:1 Z-Drag, the foundational mechanical advantage system for whitewater rescue. We will adapt to your craft, discovering why a one-size-fits-all kit is a myth and how to tailor your lightweight loadout for the unique demands of a commercial full-size raft, a hardshell kayak, or an ultralight packraft. And most importantly, we will prioritize a trained mind, recognizing why formal rescue training is the single most critical, non-negotiable component of any effective raft safety system.

What Exactly is a Whitewater Pin Kit?

Before we can build the system, we have to define the problem it solves. This section will establish a clear, authoritative definition of the raft pin kit, differentiate it from other rescue gear, and frame its singular, critical purpose for anyone rafting in challenging water.

Why is it called a “Pin Kit”?

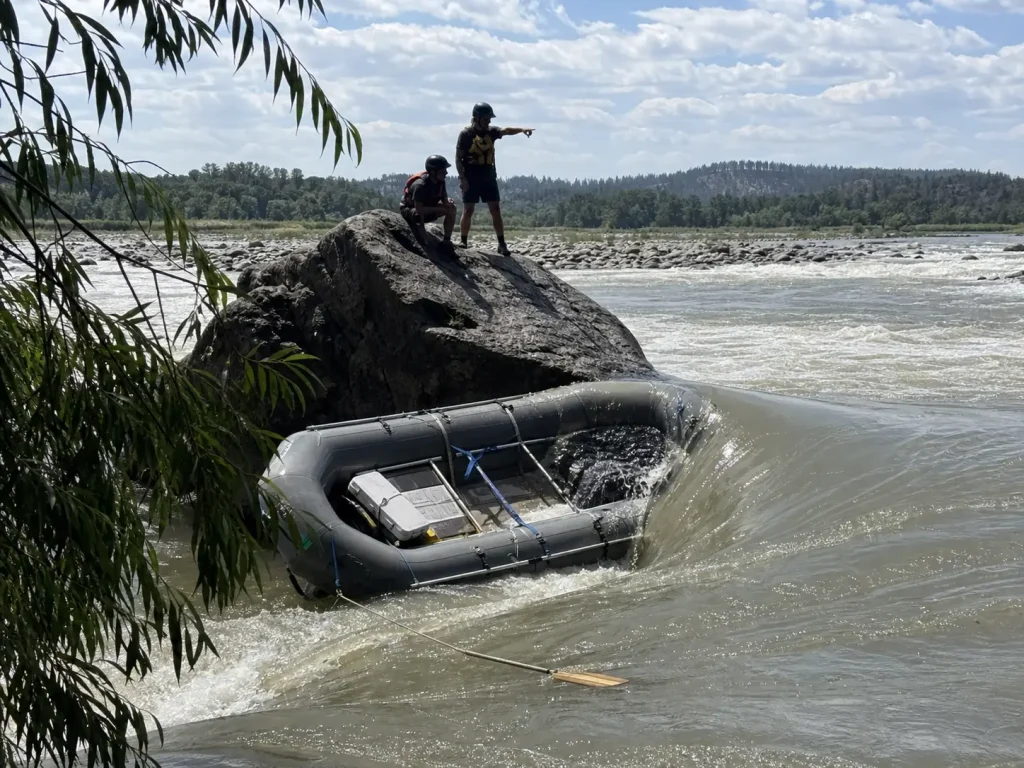

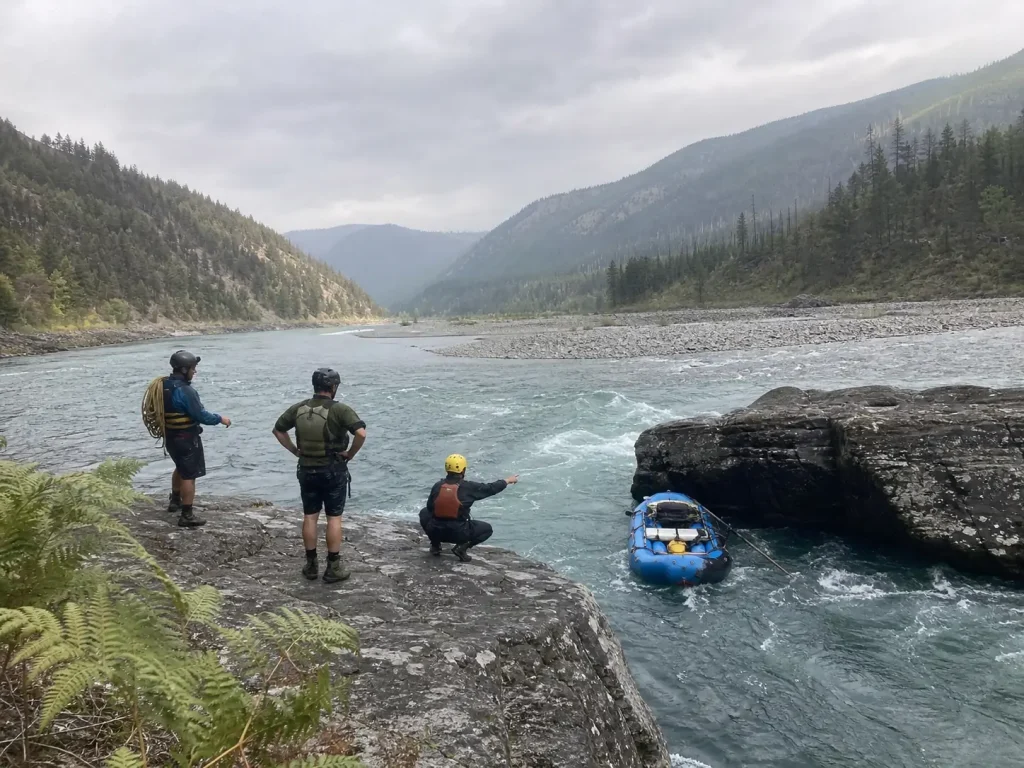

The name comes from the problem itself. A “pinned” or “wrapped” boat is one that has been pushed sideways against an obstacle—typically a rock or a strainer—by the relentless force of the current. The physics are brutal and simple: water moving at just a few miles per hour exerts tons of pressure across the broad side of a raft or kayak. Direct human force is completely futile against a stuck raft. It’s like trying to push a car that’s being held in place by a hydraulic press.

This is where the pin kit comes in. It is a field-deployable system engineered for one primary purpose: to generate substantial 3:1 mechanical advantage and overcome that immense hydraulic force. The collection of ropes, pulleys, and carabiners is worthless until it’s assembled correctly into a hauling system, most commonly the Z-drag.

You’ll hear other names on the river—”Un-Pin Kit,” “Sweep Kit,” or “Z-Drag Kit”—and they often refer to the same core hardware. However, it’s crucial to differentiate a true pin kit from a broader sweep kit. A sweep kit is a malleable piece of rescue gear that might also contain a first aid or medical kit, boat repair items like a small pump and extra tagaderm, and additional group gear in a waterproof container. The Pin Kit refers specifically to the minimum gear inventory required to unpin rafts using mechanical advantage rope rescue techniques. Think of it as a specialized tool for high-consequence, low-frequency emergencies. It’s not for everyday use, but when you need it, nothing else will do. Understanding the physics of how powerful currents can trap your vessel is the first step to respecting the power you’re trying to overcome.

With a clear understanding of its purpose, the next step is to break the system down into its individual, mission-critical components.

What Are the Core Components of a Pin Kit?

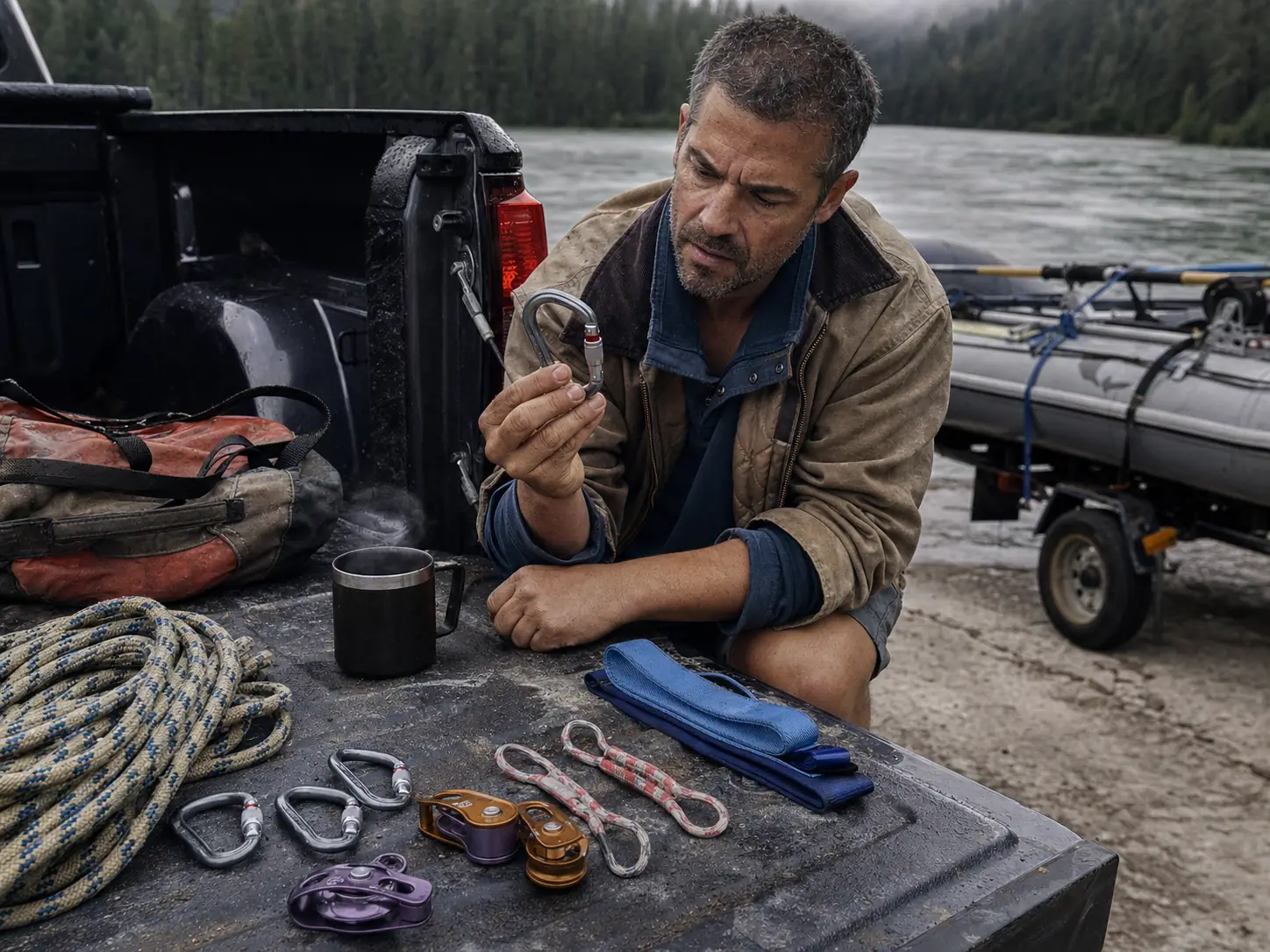

This section deconstructs the industry-standard “4:3:2:1:1 principle,” providing a detailed analysis of each component’s function, critical attributes, and technical specifications. This mnemonic, sometimes attributed to guide Mark Hirst, is the foundation of a well-stocked personal rescue bag, ensuring you have the necessary hardware to build a Z-rig.

4 Locking Carabiners: The System Connectors

Carabiners are the fundamental connectors of the system, linking the rope to anchors, pulleys, and prusiks. In the high-stakes environment of a whitewater river, there is one unequivocal rule: only locking carabiners are acceptable. A non-locking carabiner presents a severe snag and entrapment hazard and has no place in a life-safety hauling system.

The two main gate types are the manual screw-gate and the auto-lock gate (like twist-lock or triple-action). While a quality screw gate carabiner like the Osprey Oval Screwlock is effective, auto-lockers such as the Falcon Autolock are generally preferred in wet, cold, or high-stress situations because they can’t be forgotten in an unlocked state.

Pro-Tip: Always practice the “Clean Line Principle.” This means orienting your carabiner gates so they face away from rock faces and ensuring the locking mechanism isn’t positioned where it can be ground against an obstacle or vibrated open. Keep your setup tidy and snag-free.

Performance in this emergency gear bag is measured in Minimum Breaking Strength (MBS), typically rated in kilonewtons (kN). You’ll see certifications from standards bodies like the NFPA (National Fire Protection Association) and the UIAA. NFPA 1983 ratings are common in the US rescue world: “T-Rated” (Technical Use, MBS ≥ 22kN) is sufficient for lighter loads like kayaks, while “G-Rated” (General Use, MBS ≥ 40kN) is the standard for heavy-duty rafting rescue. For any quality hardware from a vendor like River Hardware, you should look for strength ratings that meet or exceed the UIAA 121 / EN 12275 standard (at least 22 kN), which provides a benchmark based on globally recognized safety standards for mountaineering equipment.

Once the system is connected, the next challenge is minimizing energy loss, which is the exclusive job of the pulleys.

3 Pulleys: The Friction Reducers

Pulleys are essential for efficiency. Their sole purpose is to reduce the friction of the rope running through the system, translating your pulling force into powerful load movement. Using carabiners in place of pulleys is a desperate, last-ditch option; the immense friction they create can cut the real-world efficiency of a 3:1 system in half, degrading it to something closer to a 2:1.

The most critical attribute of a rescue pulley is the Prusik-Minding Pulley (PMP) design. These pulleys have extended side plates that are wider than the sheave (the wheel). This is a crucial safety feature that prevents the prusik knot—your rope grab—from being pulled into the pulley and jamming the entire system under thousands of pounds of load.

When choosing pulleys, you’ll encounter two main bearing types: bushing bearings and sealed bearings. Bushings are less expensive, but sealed bearings offer significantly higher efficiency (often >95%) and are more resistant to grit and silt, making them the superior choice for river environments. Premium options like the Rock Exotica Machined Rescue Pulley are standard for heavy raft kits, while lighter kits for day trips may use a micro-pulley like the Rock Exotica Mini to save on weight. All high-quality pulleys will have MBS ratings and a working-load limit compatible with other system components, typically 22 kN or higher. So, what about the third pulley? In a standard 3:1 Z-Drag, only two are required. The third is used as a “redirect” at the anchor, which improves team ergonomics and safety by moving the haul team out of the direct “line of fire” should the anchor or a component fail.

Pulleys manage the moving rope, but to make progress, you need a way to grip that rope without damaging it; this is the role of the prusik loops.

2 Prusik Loops: The Rope Grabs

Prusik loops are elegant, simple friction hitches that function as movable “rope grabs.” They are the engine of the Z-Drag. When weighted, the knot cinches down and grips the main line with incredible force; when unweighted, it slides easily along the rope. In a Z-Drag, the two prusiks serve distinct roles.

• Role 1 – Traveling Grab: One prusik attaches to the “traveling pulley.” This is the part of the system that moves, gripping the main line and pulling the load forward as the haul team pulls.
• Role 2 – Progress Capture: The second prusik is the “ratchet” of the system. It’s often called the Progress Capture Device (PCD). It is fixed near the anchor and holds the main line fast, preventing the load from slipping backward every time the haul team resets for another pull.

For a prusik to grip effectively, its prusik cord diameter must be compatible with the main rope. The general rule is that the prusik cord, often 7mm cord, should be 70-80% of the main rope’s diameter. You can get factory-sewn loops, which are strong, low-profile, and eliminate knot-tying errors, or you can tie your own from accessory cord using a double fisherman’s knot. Modern paddlers often use a mini prusik made of heat-resistant material like Technora or UHMWPE (6mm spectra) to handle high friction. Certified sewn loops will have an MBS rating, often around 20 kN, ensuring they are a strong link in the system.

Pro-Tip: Don’t wait for a real rescue to see if your prusiks work with your rope. Perform a “pinch test” in your living room. Tie the prusik hitch, pull it tight, then bend the cord back on itself. If the loop formed by the bent cord is smaller than the diameter of the main rope, it will not grip effectively under load. Test your gear before you trust your life to it.

All this hardware needs a bombproof point to pull from, which requires strong, versatile webbing slings.

2 Webbing Slings/Anchors: The Foundation

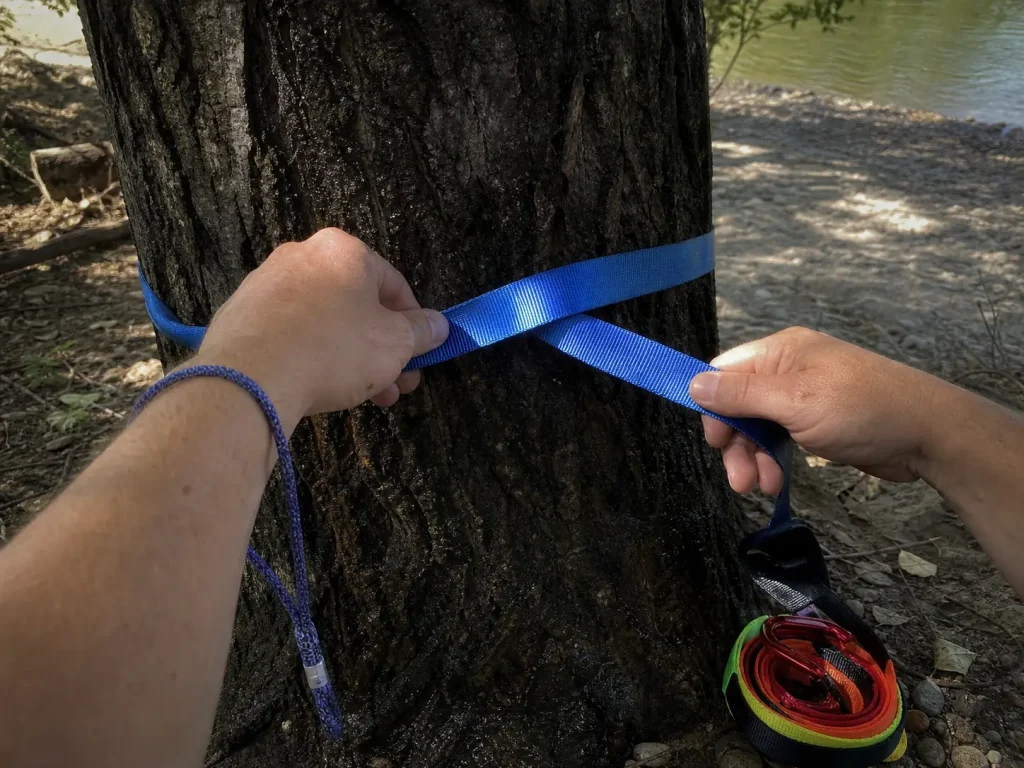

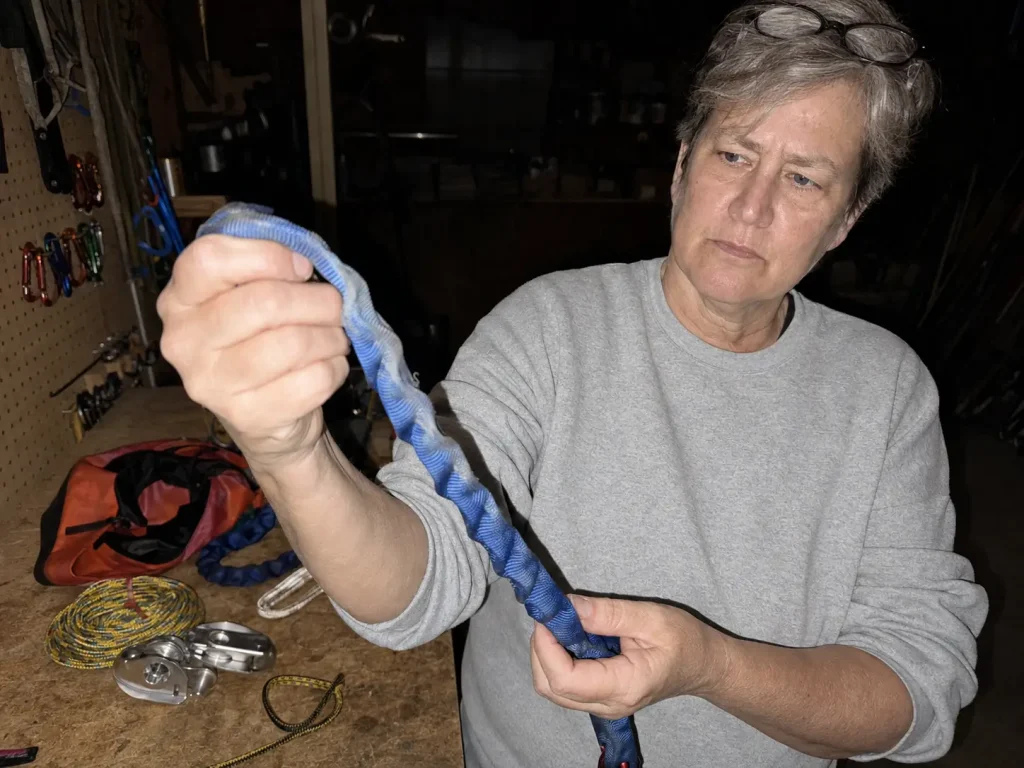

Webbing slings are used to create a secure, or “bomber,” anchor point around a substantial object like a multi-ton boulder or a large, healthy tree. The entire multiplied force of your hauling system—potentially thousands of pounds—is transferred to this single anchor point, making its strength and security paramount.

The most common material is 1-inch tubular webbing, which can be tied into a loop with a water knot. A superior alternative is factory-sewn slings (made of Nylon, Dyneema, or Spectra), which are stronger, lighter, less bulky, and free from potential for knot-tying errors. A common mistake is carrying slings that are too short. A 10-foot sling severely limits your options; carrying slings of 12-20 ft or more provides the versatility needed to anchor to real-world objects.

Certified sewn slings meet rigorous international standards for sewn webbing slings, like UIAA 104 / EN 566, which mandate a minimum breaking strength of 22 kN. It’s important to note that standard 1-inch tubular webbing has a tensile strength of about 4,000 lbf (~17.7 kN), which is below the 22 kN standard and must be accounted for. The second “anchor” in the 4:3:2:1:1 count is often a shorter sling or a flip line, which can serve as a secondary anchor point or be used to attach the system directly to the load.

With a solid anchor established, the final component is the main artery of the system: the static rescue rope.

1 Static Rescue Rope: The Main Haul Line

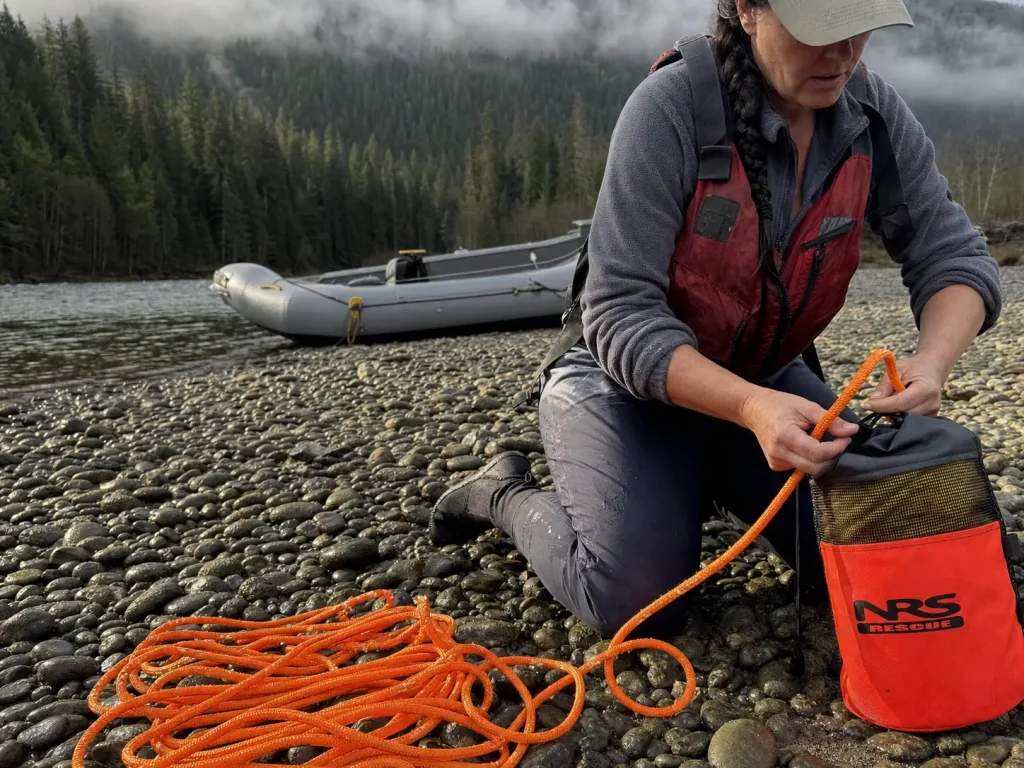

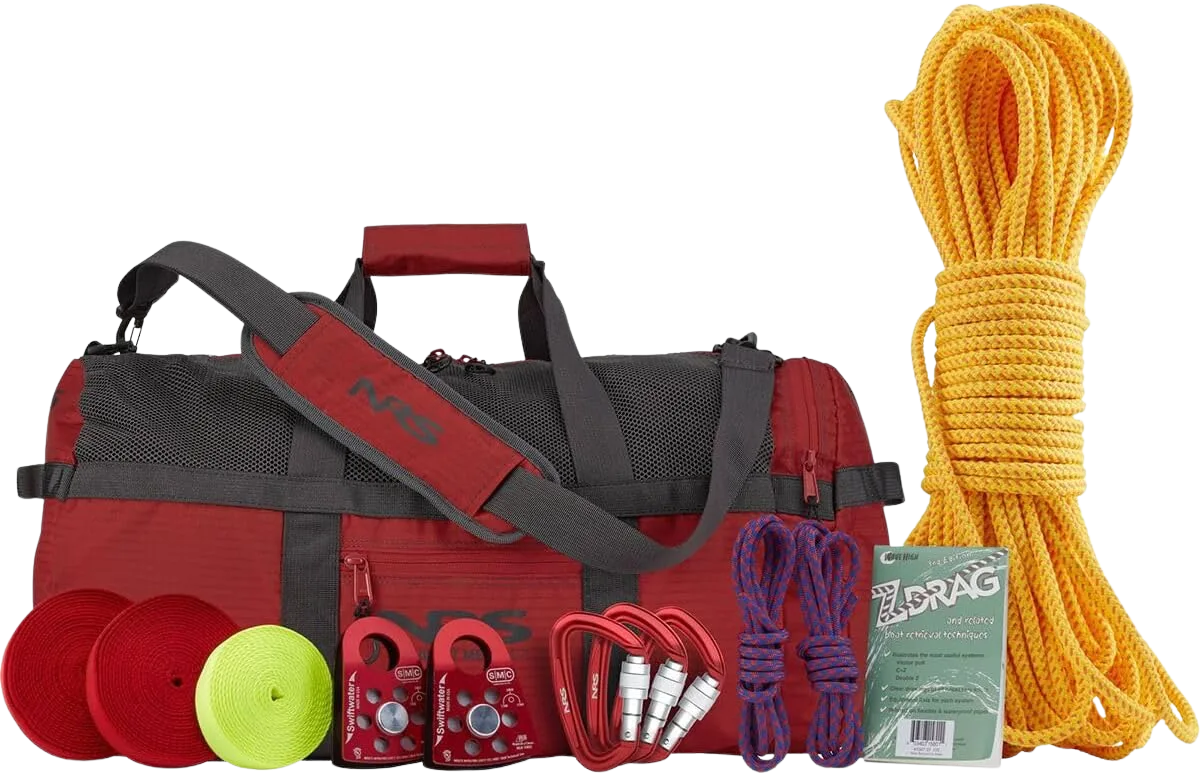

This is the main line connecting the anchor to the load and running through the pulleys. For a hauling system, the rope must be static or low-stretch. This is the single most critical specification. Dynamic ropes, used for rock climbing, are designed to stretch significantly to absorb the energy of a fall. In a hauling system, that high rope elongation is a massive liability. Rescuers would waste most of their effort simply pulling the stretch out of the rope instead of moving the boat.

Modern rescue ropes use kernmantle construction (a protected core inside a woven sheath) and are typically made of nylon or polyester for strength, while a weaker, floating polypropylene rope is better suited for a throw bag. The U.S. benchmark for life safety rope is the NFPA 1983 standard, which defines “Technical Use” (T) rope (9.5mm-12.5mm, MBS ≥ 20 kN) and “General Use” (G) rope (11mm-16mm, MBS ≥ 40 kN), like the popular Sterling Rope SuperStatic2 7/16″ static rope. The European equivalent, EN 1891, defines “Type A” low-stretch rope (MBS ≥ 22 kN) and specifies that elongation must not exceed 5%. The ideal rope length is entirely mission-dependent, ranging from 75-200 ft to handle various scenarios on a river rafting trip.

Now that you know the function of every piece of hardware, it’s time to assemble them into a powerful force-multiplying machine.

How Do You Rig the Standard 3:1 Z-Drag System?

This section provides a clear, unambiguous, and procedurally correct step-by-step guide to rigging the 3:1 Z-Drag, translating the individual components into a functional system. This is the core of pin kit deployment.

What is the step-by-step rigging process?

Rigging a Z-Drag under pressure requires muscle memory built from practice. Here is the core sequence:

1. Establish a Bomber Anchor: Wrap your long webbing sling around the base of an immovable object (a huge boulder or tree). Connect the ends with a locking carabiner. This is your master anchor point. Attach one pulley to this carabiner now.
2. Connect the Main Line: Secure one end of the static rope to a strong point on the pinned craft—the load. This could be a grab handle or a frame D-ring on one of the paddle boats.
3. Set the Progress Capture Device (PCD): On the segment of rope running from the anchor down to the load, attach your first prusik loop using a 3-wrap prusik hitch. Clip this prusik directly to the anchor carabiner. This is your “ratchet”; it will hold the load while your team resets.
4. Attach the Traveling Pulley: Further down that same rope segment, closer to the load, attach your second prusik loop. Clip your second pulley to this traveling prusik.
5. Create the Haul Line: Take the free end of the rope (which has already passed through the anchor pulley) and run it down and through the traveling pulley you just created. The rope end emerging from this pulley is now your active haul line.
6. Engage the System: As your team pulls on the haul line, the traveling prusik grips the main line and pulls it toward the anchor. The PCD slides along the rope during the pull and then grips to hold the progress when you stop. The three strands of rope supporting the load between the anchor and the traveling pulley create the theoretical 3:1 mechanical advantage.

The system is named for the ‘Z’ shape the rope makes as it runs from the anchor, to the load, back to the anchor, and finally out to the haul team. For added safety, the third pulley can be used at the anchor to redirect the haul line, allowing the team to pull from a position that is out of the “line of fire” should anything fail.

This baseline configuration is powerful, but you need to be able to harness the physics of mechanical advantage with a Z-Drag rescue system through practice. Its components must also be strategically scaled up or down depending on the specific craft you’re paddling.

How Should You Tailor Your Kit to Your Craft?

The 4:3:2:1:1 principle is a baseline, not a mandate. The river class applicability is huge; a boater on Class III+ water has very different needs from a guide on a multi-day trip. The critical content gap in most discussions is how kit requirements change based on the specific watercraft.

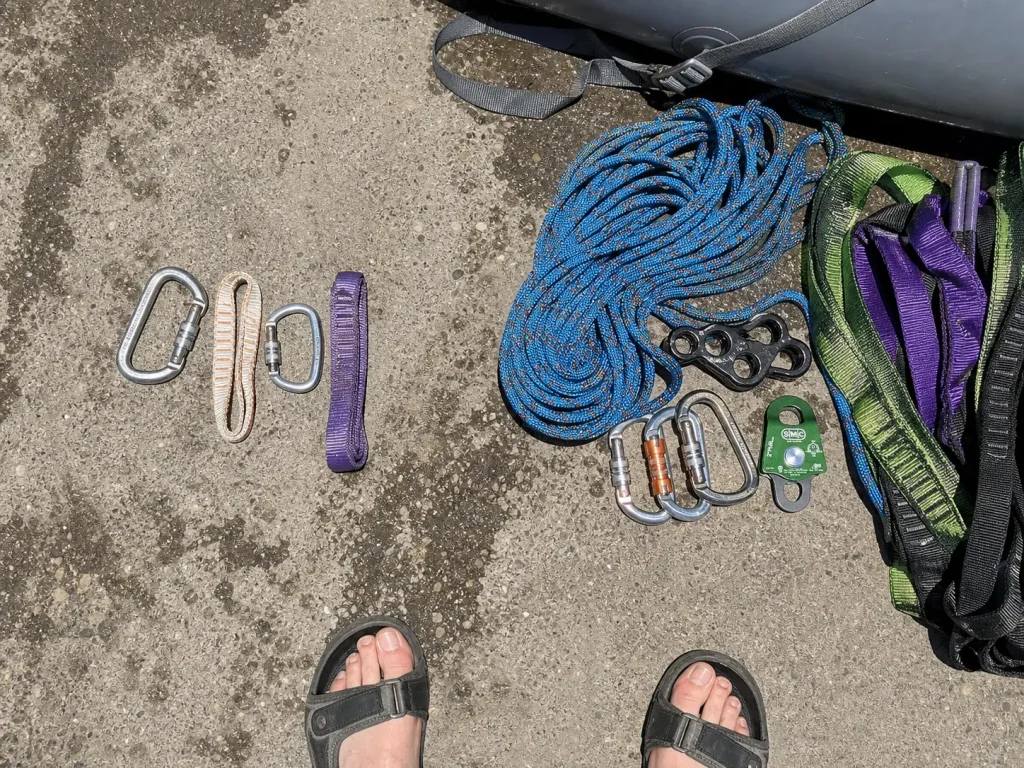

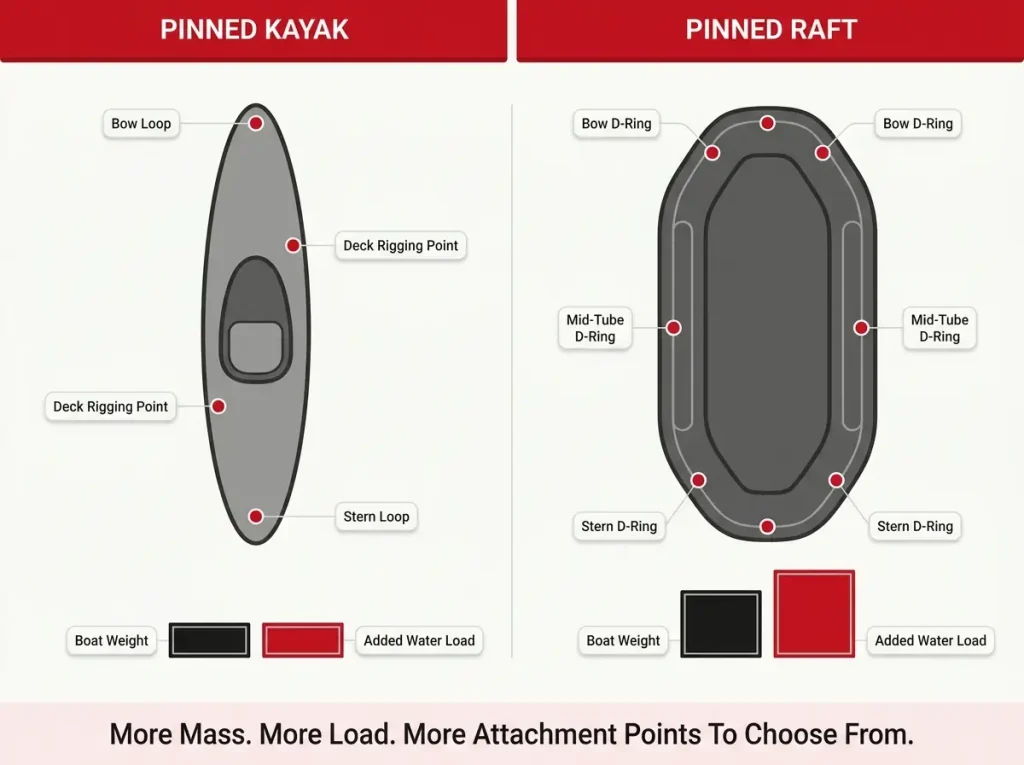

Raft vs. Kayak vs. Packraft: A Comparison

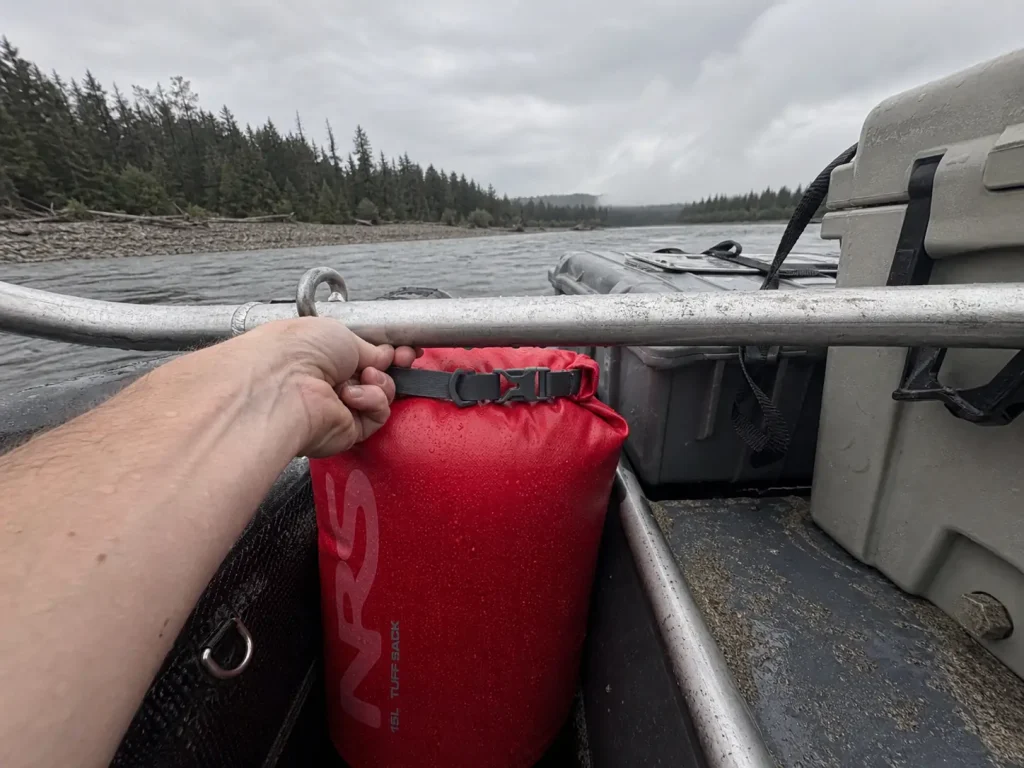

• The Commercial Raft / Outfitter Kit: The primary goal here is overcoming the heaviest possible loads—a fully loaded 18-foot raft can weigh thousands of pounds. This trip type demands a kit that prioritizes strength over weight. Components must be NFPA General Use (G-Rated, 40 kN MBS) hardware. The rope will be a G-Rated or Type A thick diameter rope, 11mm-12.5mm, and at least 200 feet long. This kit may also incorporate rigging plates for clean anchor organization and requires multiple long slings (20+ feet). The storage location for all this equipment is a large, dedicated pin kit bag inside a stern dry-bag for ease of re-packing.
• The Whitewater Kayak “Un-Pin” Kit: Here, the rationale shifts to portability and rapid deployment for a much lighter load. The entire kit must fit in the stern of a kayak. Strength is still critical, but components are typically NFPA Technical Use (T-Rated, 22 kN) hardware. Pre-packaged kits like the NRS Kayak Un-Pin Kit are common. The rope is shorter (70-90 feet) and thinner (~7-9mm), often a high-tech spectra cord. The rope’s MBS is a calculated trade-off—lower than a raft rope, but sufficient for a kayak. The preferred storage is on-body storage in a rescuer’s PFD pocket for immediate access.
• The Ultralight Packraft Kit: This rafting pin kit is defined by absolute minimalism, ultralight weight, and a compact size. The main haul line is often the user’s waist-belt throw-bag rope (~65 feet of 1/4″ ultralight line). Some packrafting enthusiasts may carry a micro-pulley, while others rely solely on carabiners to save weight, accepting the massive friction penalty. A vocal segment of the community argues a full mechanical advantage system is unnecessary weight for a craft that can often be freed simply by deflation. Like a kayak kit, this gear is stored on-body in a PFD.

Choosing the right gear is a critical step, but it’s only the first part of the process to assemble a trip-specific swiftwater rescue system. The most powerful tool in your rescue arsenal isn’t made of metal or nylon.

What is the Most Important Component of Any Rescue System?

This is the article’s most critical message: owning the gear is not a substitute for possessing the skill level. Formal, hands-on training is absolutely non-negotiable for whitewater river rafting.

Why is Certified Training Non-Negotiable?

The most critical attribute of any of these unpin rescue kits is the user’s knowledge. The gear itself is inert. Possessing the kit without training provides a false sense of security that can lead to hesitation, inaction, and catastrophic failure when facing dangerous rapids. A poorly rigged system is not just ineffective—it is actively dangerous. Under thousands of pounds of force, a mistake in the system can cause it to fail catastrophically, sending hardware flying like shrapnel and injuring or killing whitewater paddlers.

A formal swiftwater rescue (SWR) training course from an organization like the Swiftwater Safety Institute covers far more than just knots and swiftwater rescue procedures. It teaches critical skills in hydrology, hazard assessment, and risk management. You can see the depth of required knowledge in the authoritative outline of the skills and knowledge required for a course like the American Canoe Association (ACA) Level 4 Swiftwater Rescue.

Perhaps the most important skill taught is judgment. Professional training provides a framework for decision-making under stress. It teaches you how to evaluate risk versus reward and, most importantly, teaches you when not to use a system. A clear path to competency involves taking courses from reputable, internationally recognized certifying bodies like the ACA, Whitewater Rescue Institute (WRI), and Rescue 3 International. This training is a core component of mastering rafting safety.

Conclusion

The journey from seeing a pin kit as a bag of hardware to understanding it as a life-safety system is a significant one. We’ve established that pin kits are specialized tools designed to create mechanical advantage, with the 3:1 Z-Drag as their primary application. The “4:3:2:1:1 principle” provides a solid baseline, but every component—from locking carabiners and prusik-minding pulleys to a truly static rope—must meet specific technical standards. An effective kit must be intelligently adapted to the specific craft and water, balancing the budget vs. premium trade-offs of strength, weight, and portability. But the single most important investment is not in the hardware itself, but in the certified, hands-on swiftwater rescue training required to use it safely and effectively.
